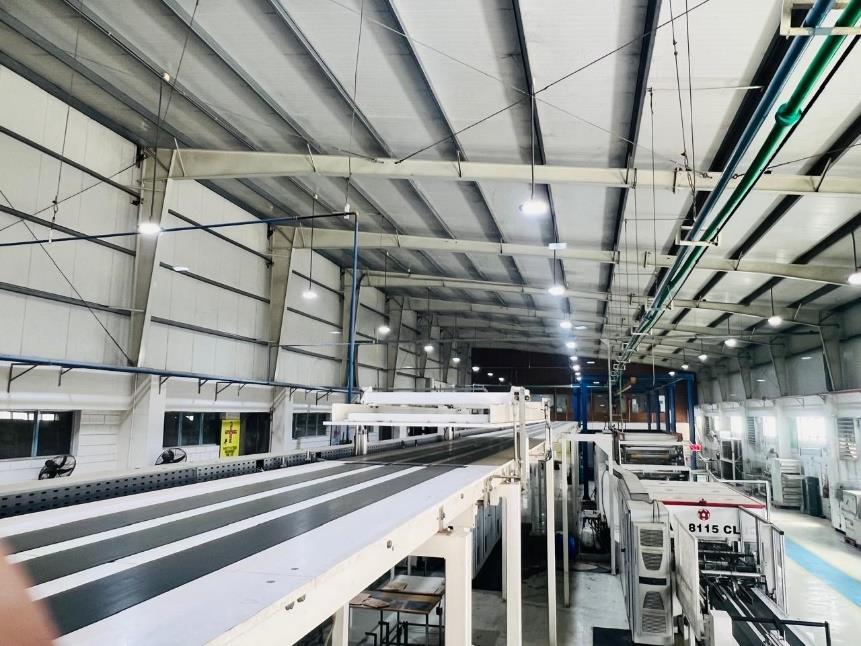

W&H 2019 Complete Paper Sack Production Line
Machine Overview & Description
W&H 2019 Complete paper sack production line very good condition and good price.
Backed by RAAI SOLUTION — Engineering Excellence in Paper Sack & Paper Bag Solutions. We help businesses build and grow in the paper sack and bag manufacturing industry — from equipment to raw materials to operations.
Complete Production Line Composition
Our Services
Technical Specifications
| Manufacturer | Windmöller & Hölscher (W&H) Germany |
| Year of Manufacture | 2019 |
| Line Application | Cement & Multiwall Paper Sacks |

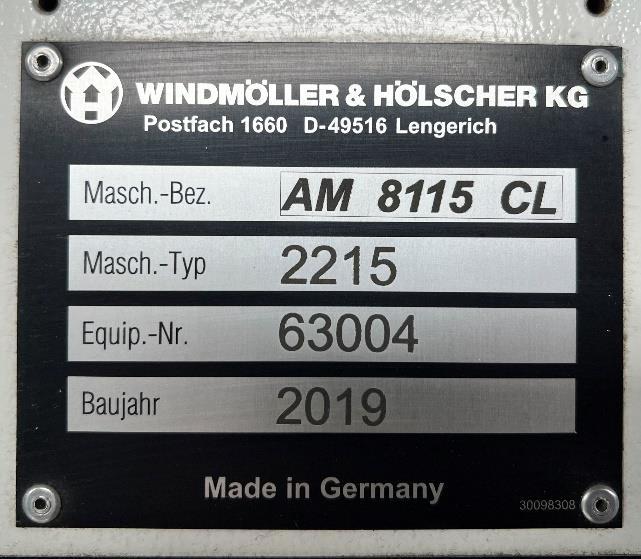

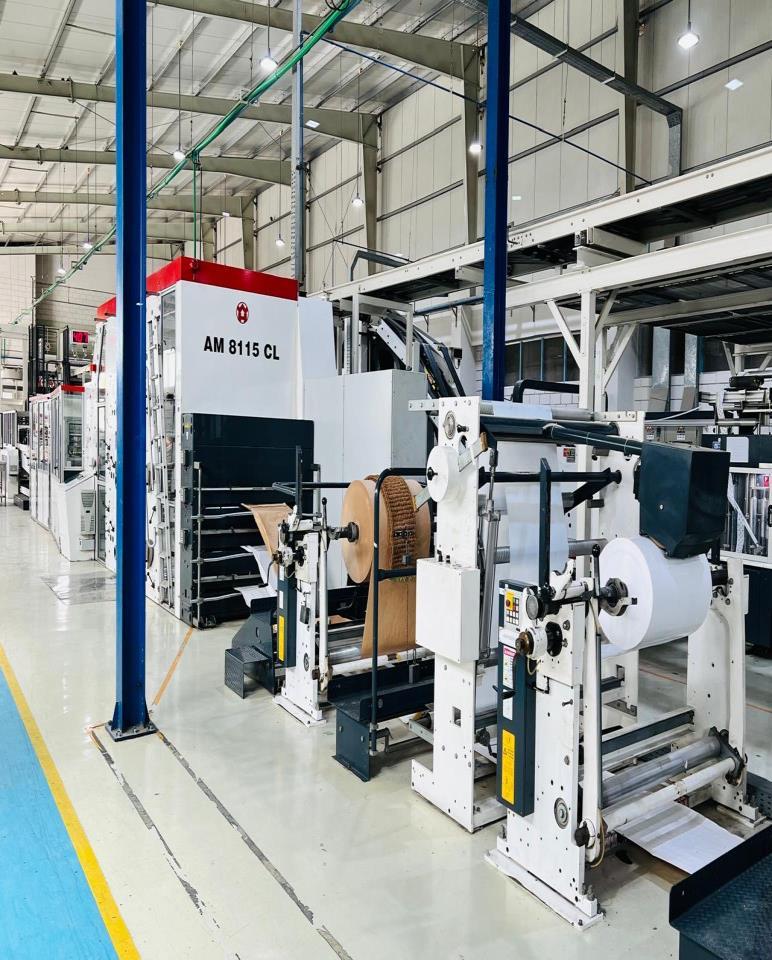

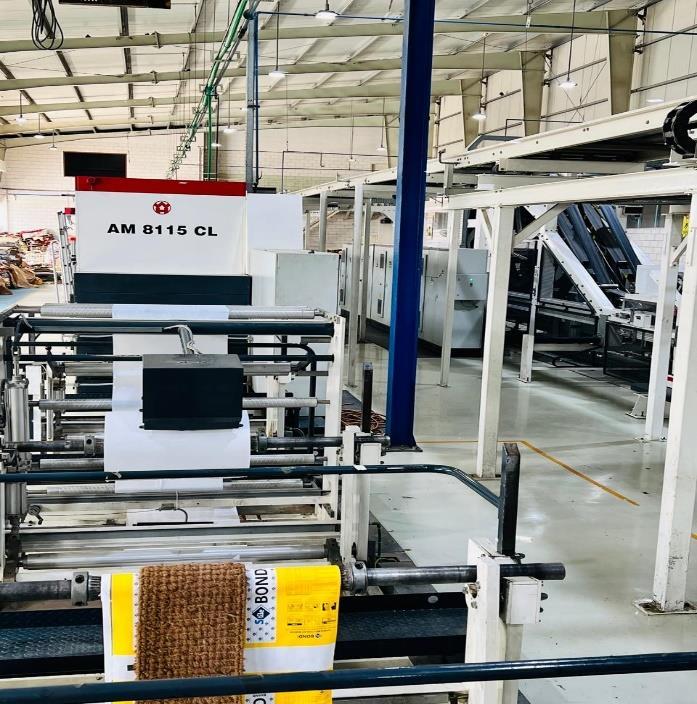

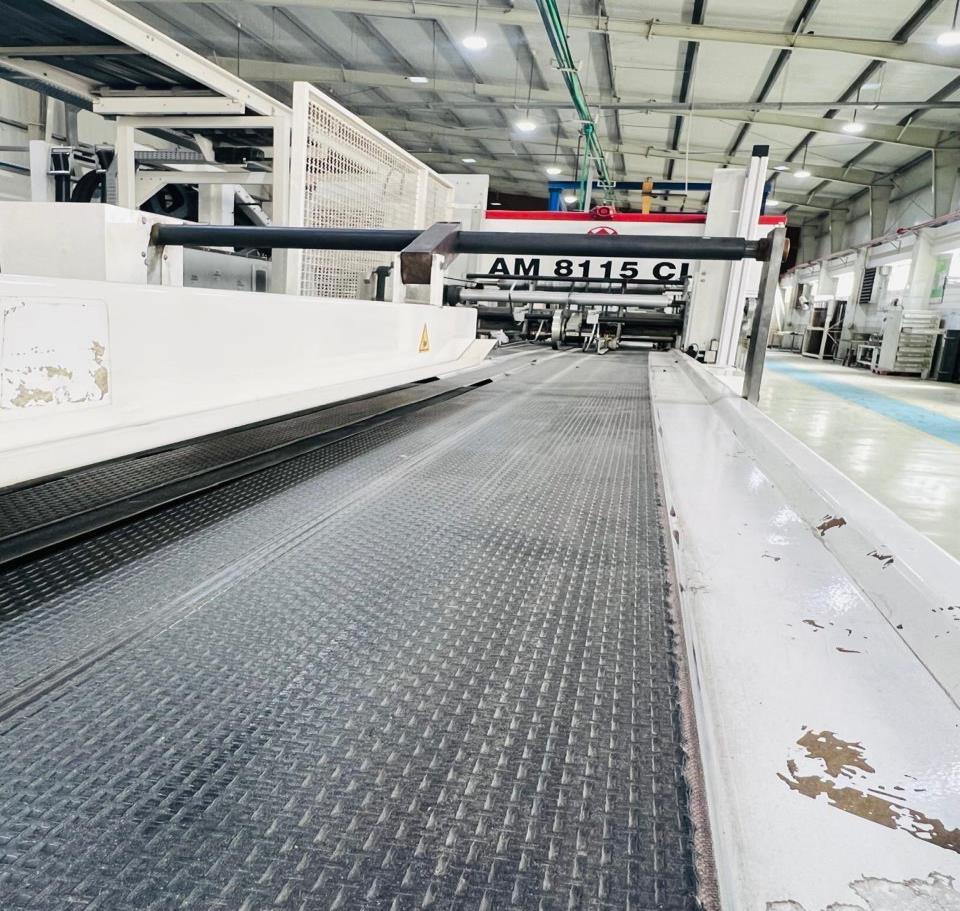

| Tuber Model | W&H AM 8115 CL (Typ 2215, Nr 63004) |

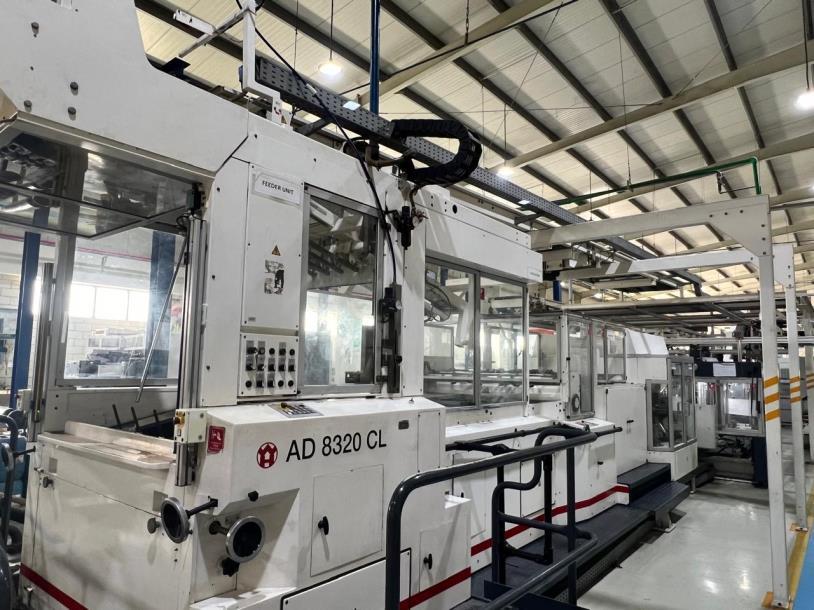

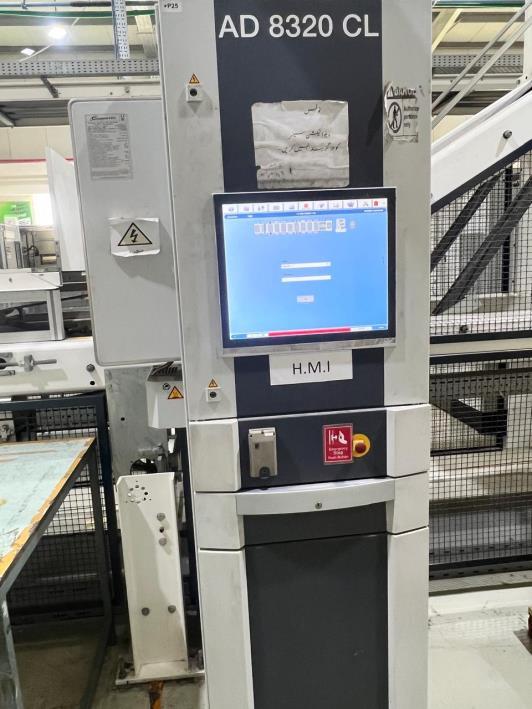

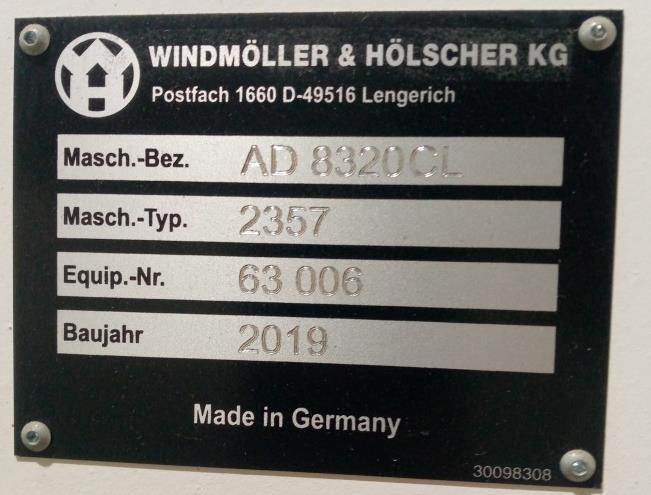

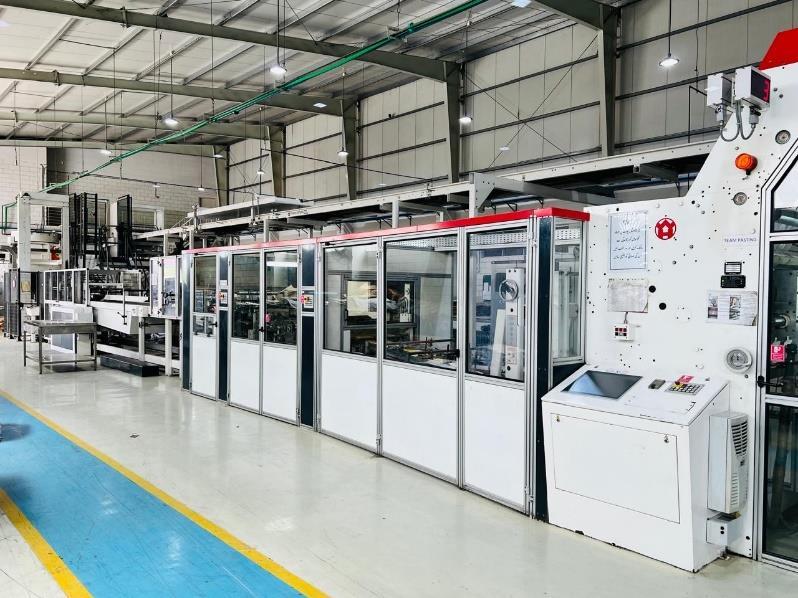

| Bottomer Model | W&H AD 8320 CL (Typ 2357, Nr 63006) |

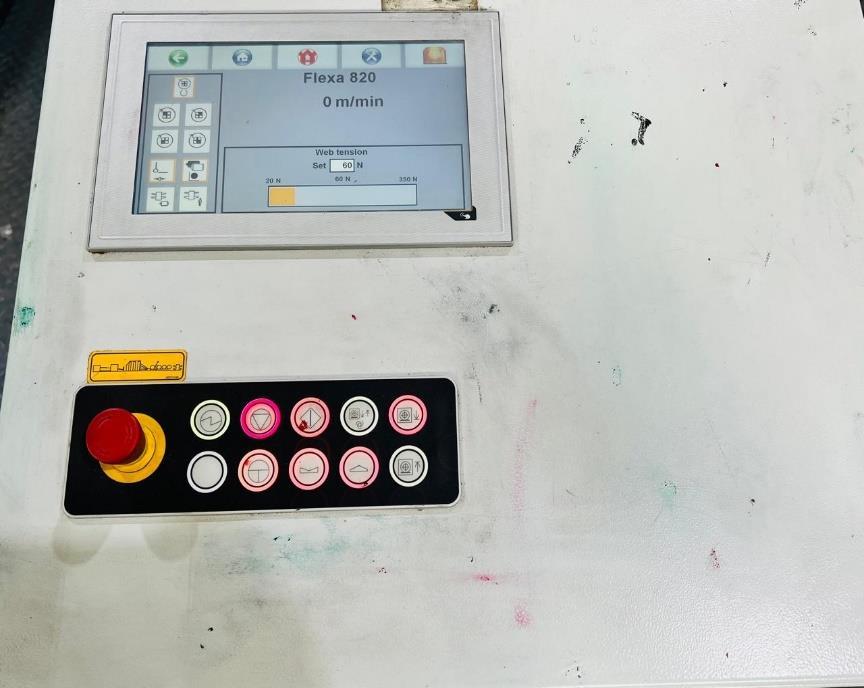

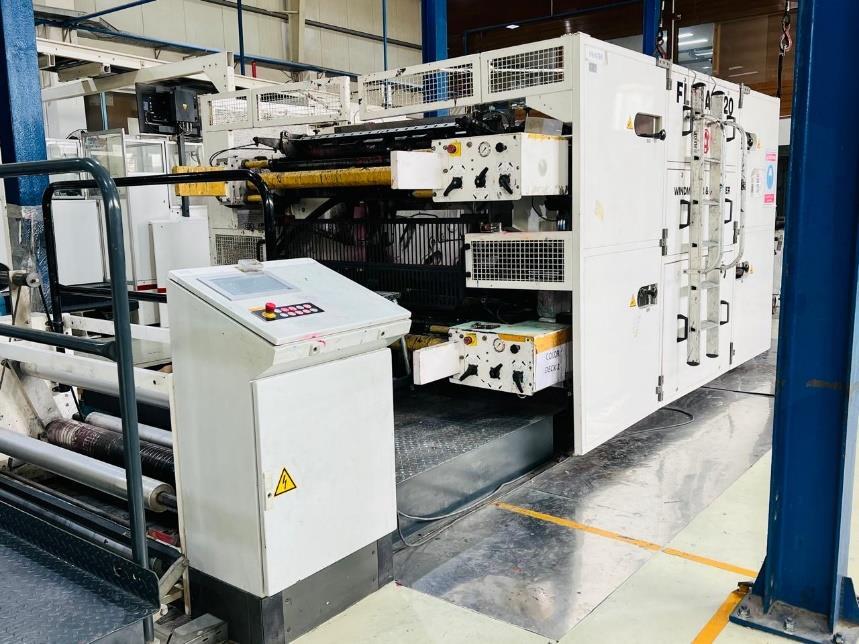

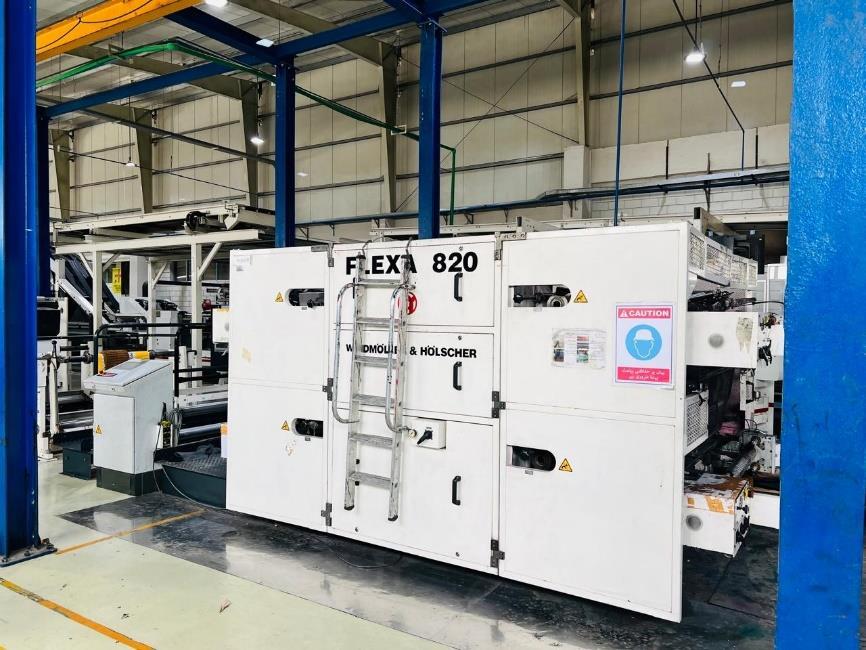

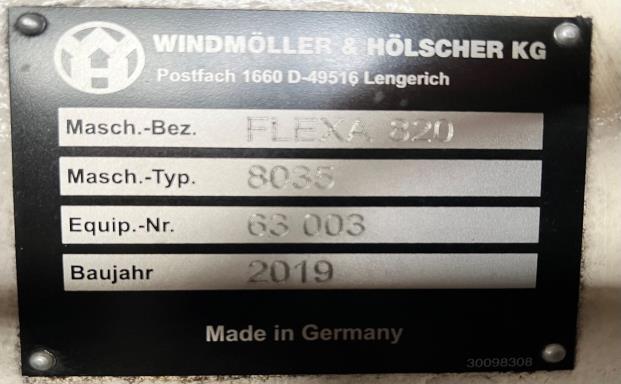

| Flexo Printer | W&H Flexa 820 (Typ 8033, Nr 63003) |

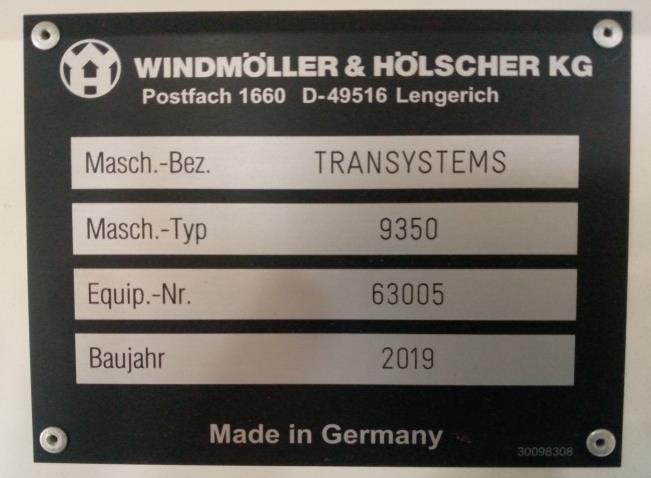

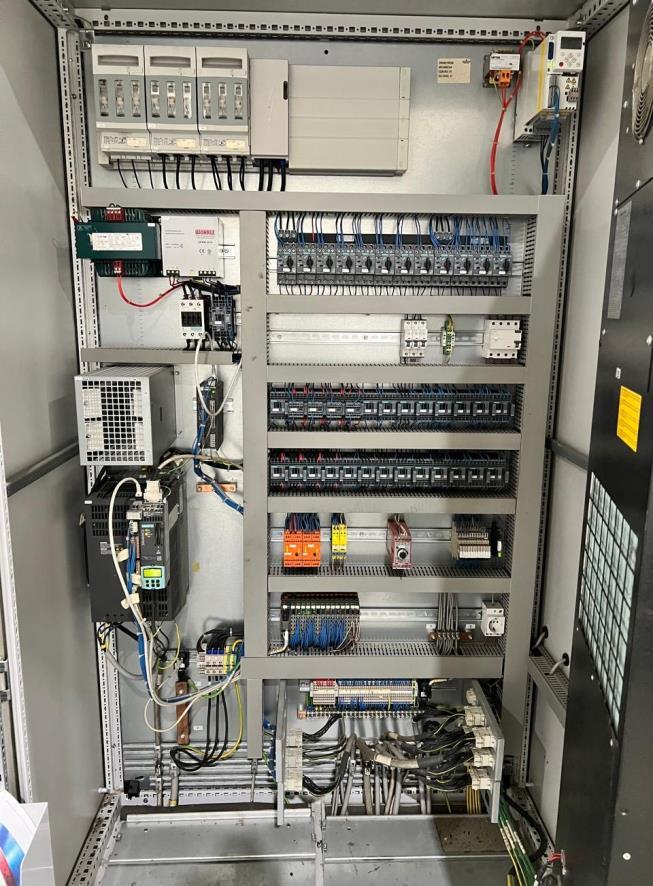

| Automation System | W&H Transystems (Typ 9350, Nr 63005) |
| Web Width | 1,370 mm |
| Printing Width | 1,320 mm |
| Print Repeat Range | 450 - 1,500 mm |
| Output Speed (Doctor Chamber Inking) | Max. 350 m/min |
| Output Speed (Fountain Roller Inking) | Max. 250 m/min (depending on job spec & cross bar design) |
| Material To Be Printed (Paper) | 40 - 250 GSM |
| Printing Inks | Water-based |
| Required Space | Per W&H installation drawing |
| Electr. Power (Connected Load) | approx. 20 kVA |
| Compressed Air at 6 Bar | approx. 0.5 Nm³/h |
| Power Characteristics (Frequency) | 50/60 Hertz |
| Power Characteristics (Voltage) | 3x400 Volts (without neutral) |
| Color Of Paint | W&H 'C' design |

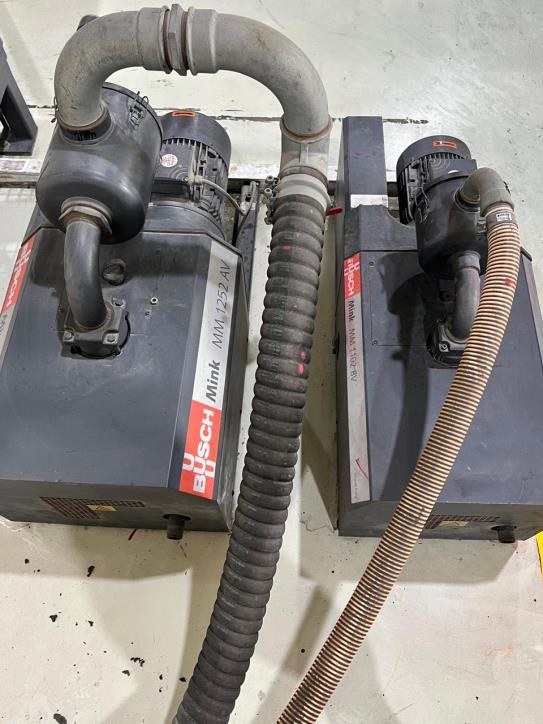

| Vacuum System | Busch Mink Vacuum Pumps |
| Origin | Made in Germany |
